DG-CDG 3.0 Drone Smoke and Flare Dispenser OSDK Linkage Unlimited Control Range

DG-CDG 3.0
Drone Smoke/Flare Dispenser

OSDK Linkage: Unlimited Control Range

A Critical Tool for Counter-Terrorism, Tactical Operations, and Public Security

Product Overview

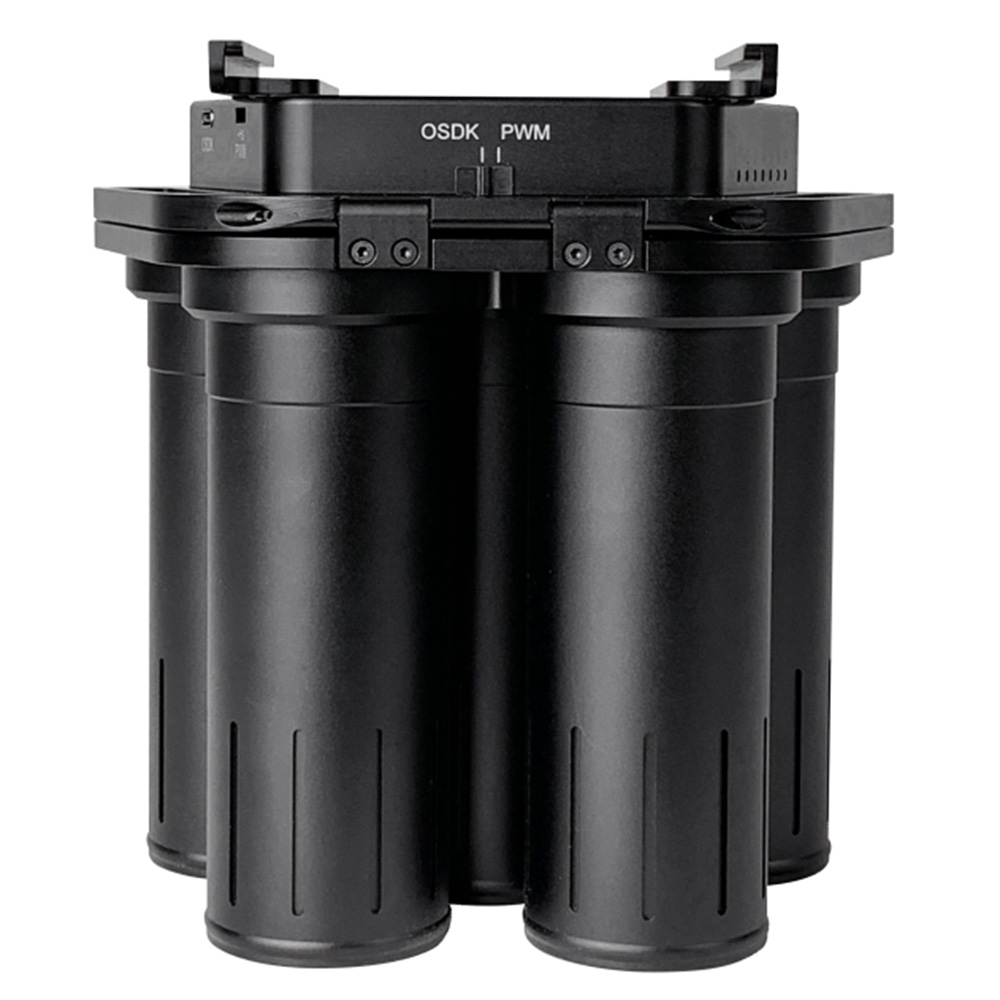

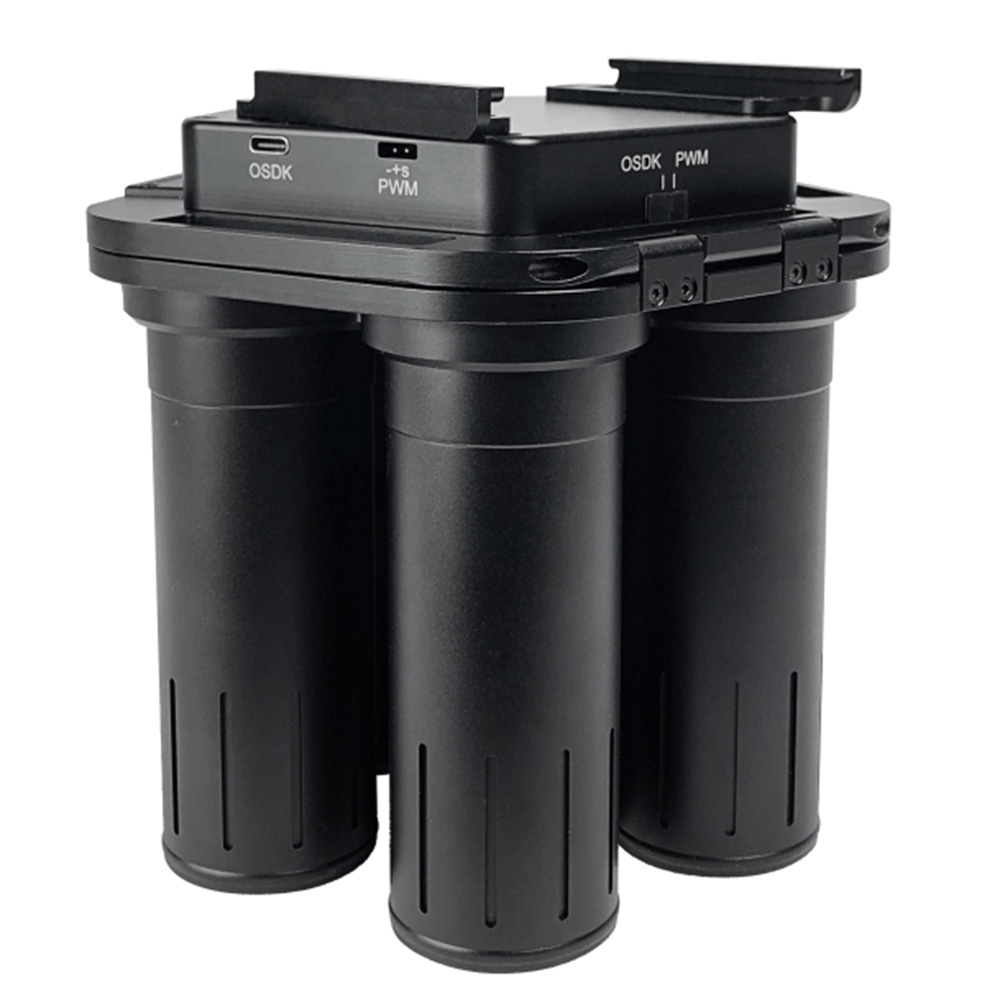

This product is a 38mm caliber drone-mounted dispenser, developed based on large-area GDR technology. It is compatible with the MOODTRT flight platform and supports multiple types of ammunition. Featuring a modular quick-release design, it allows for easy installation and removal. Controlled via OSDN linkage and a dedicated APP interface (integrated into the H300RTK remote controller), no additional hardware is required, enabling single-person operation. It supports both single and dual gimbal configurations for enhanced mission efficiency. The 38mm caliber system can load smoke grenades, tear gas, stun grenades, and more, making it ideal for military, counter-terrorism, firefighting, rescue operations, drills, and emergency response scenarios.

Design & Build

• Material: Aerospace-grade aluminum with CNC machining and anodized finish.

• Features: High precision, durability, corrosion resistance, electromagnetic interference shielding, and industrial-grade aesthetics.

Key Features

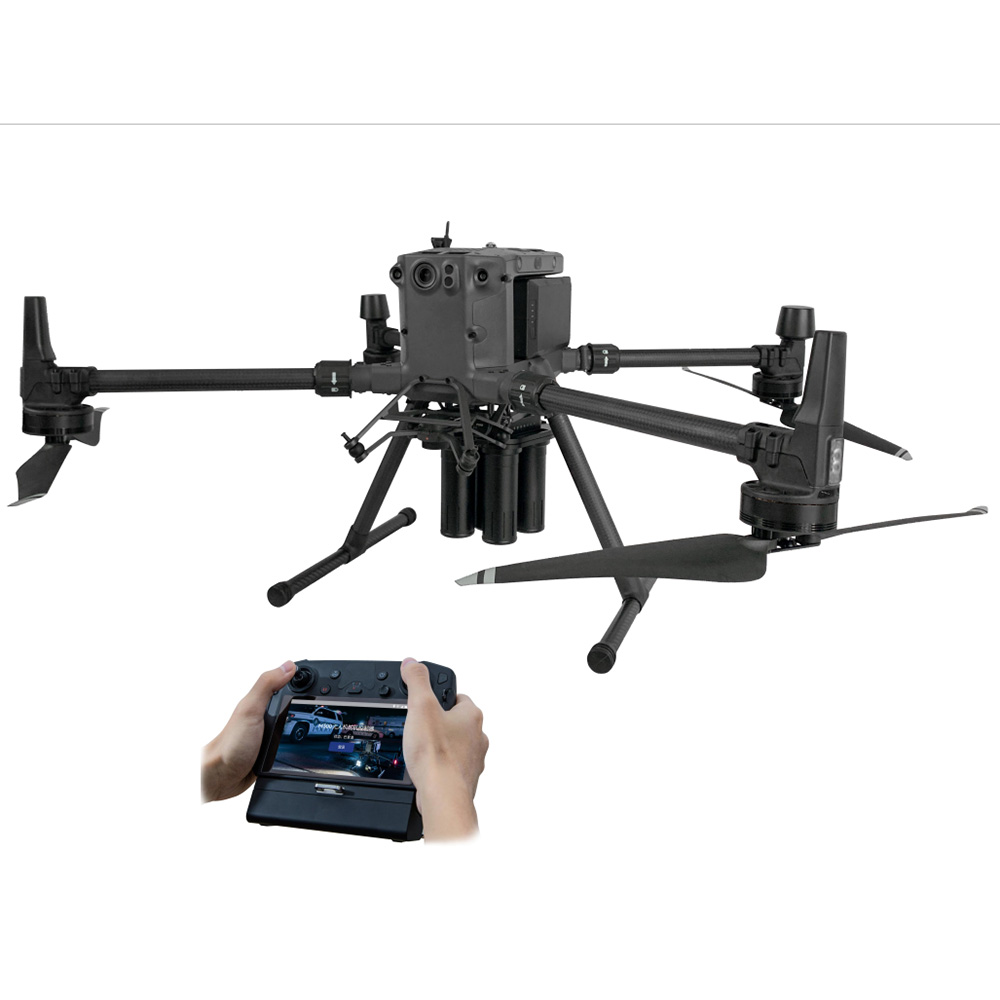

1. OSDK + APP Control

• Integrated control channels via OSDK communication.

• Dedicated APP installed on the H300RTK remote controller.

• Unlimited operational range, adaptable to various signal modes.

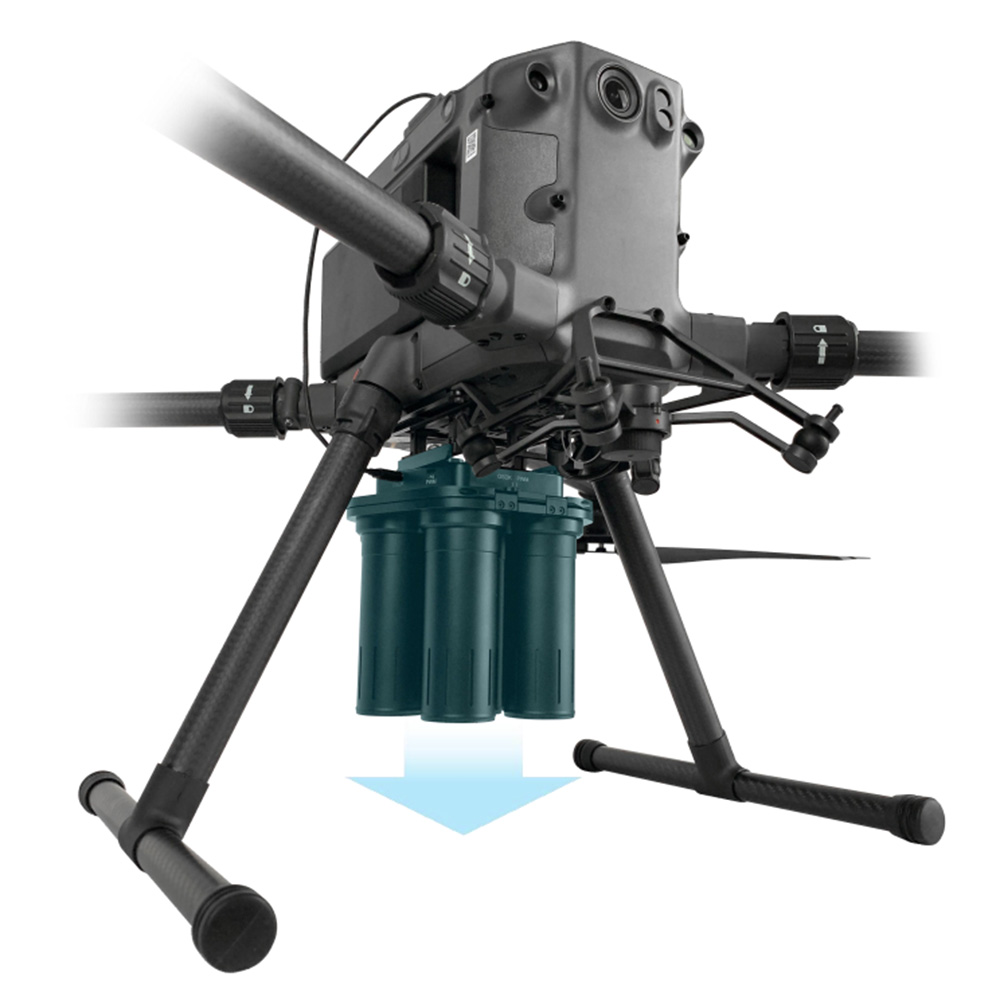

2. Vertical Launch Mechanism

• Reduces structural stress on multi-rotor drones.

• Enhances flight stability and safety during deployment.

3. Quick-Release Mounting

• Slide-and-lock design with dual safety mechanisms.

• Effortless installation/removal and rapid ammunition reloading.

4. Power Supply

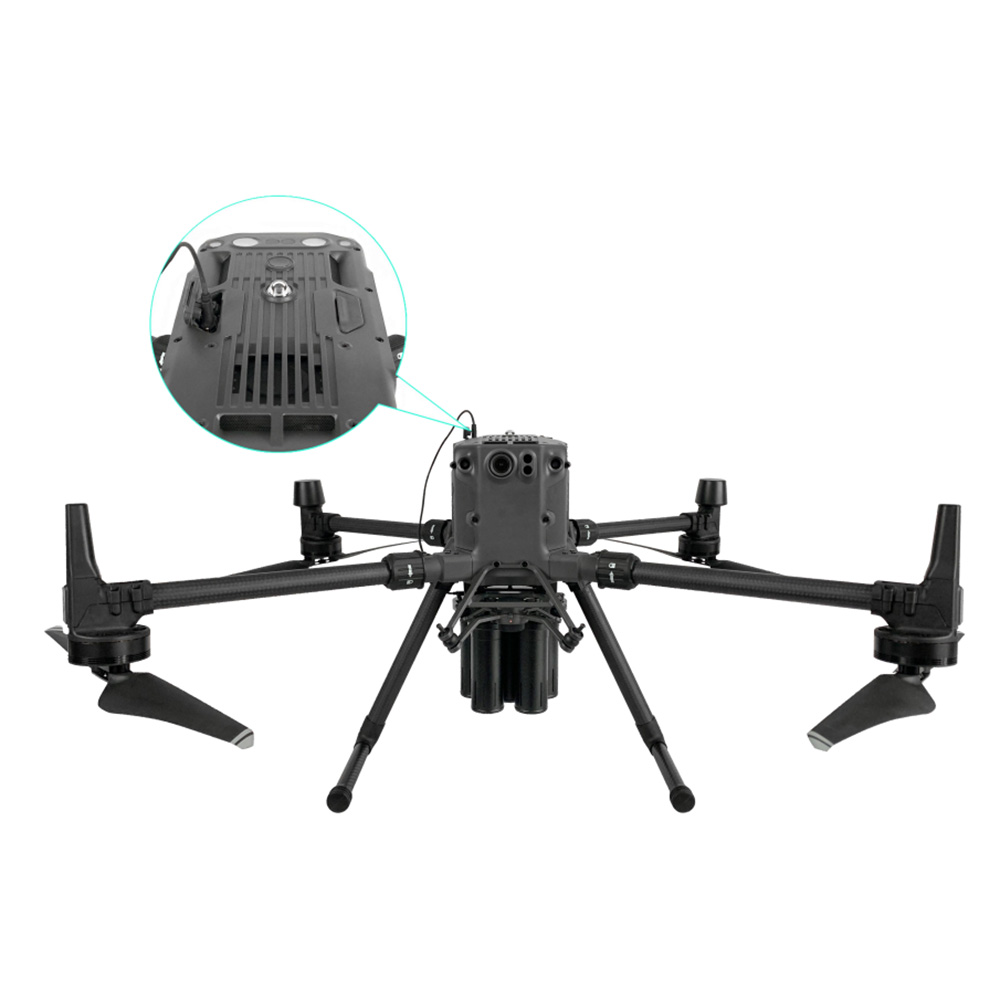

• Connects via the drone’s onboard OSDK interface (M300 features anti-reverse plug design).

• Operating voltage: 24V.

5. Modular Compatibility

• Precision-engineered universal mount fits seamlessly with NGOORTK shells.

• Compatible with other modules from the same platform.

Technical Specifications

• Model: LD-CLD 3.0 Smoke/Flare Dispenser

• Dimensions: 155mm × 147mm × 159mm

• Net Weight: 1.10 kg

• Caliber: 38mm (compatible with recoil force: 1–2 kg, range: 80m, electric ignition)

• Ammunition Capacity: 6 rounds

• Control: OSDK communication via APP

• Compatible Drones: M300RTK (custom configurations available upon request).

Application Scenarios

• Military & Counter-Terrorism: Signal deployment, crowd dispersion, tactical coordination.

• Emergency Response: Firefighting, rescue operations, disaster drills.

• Public Security: Riot control, anti-smuggling, flashbang deployment.

Supported Ammunition: Smoke grenades, tear gas, stun grenades, flashbangs, low-velocity rounds, and more.

Package Contents

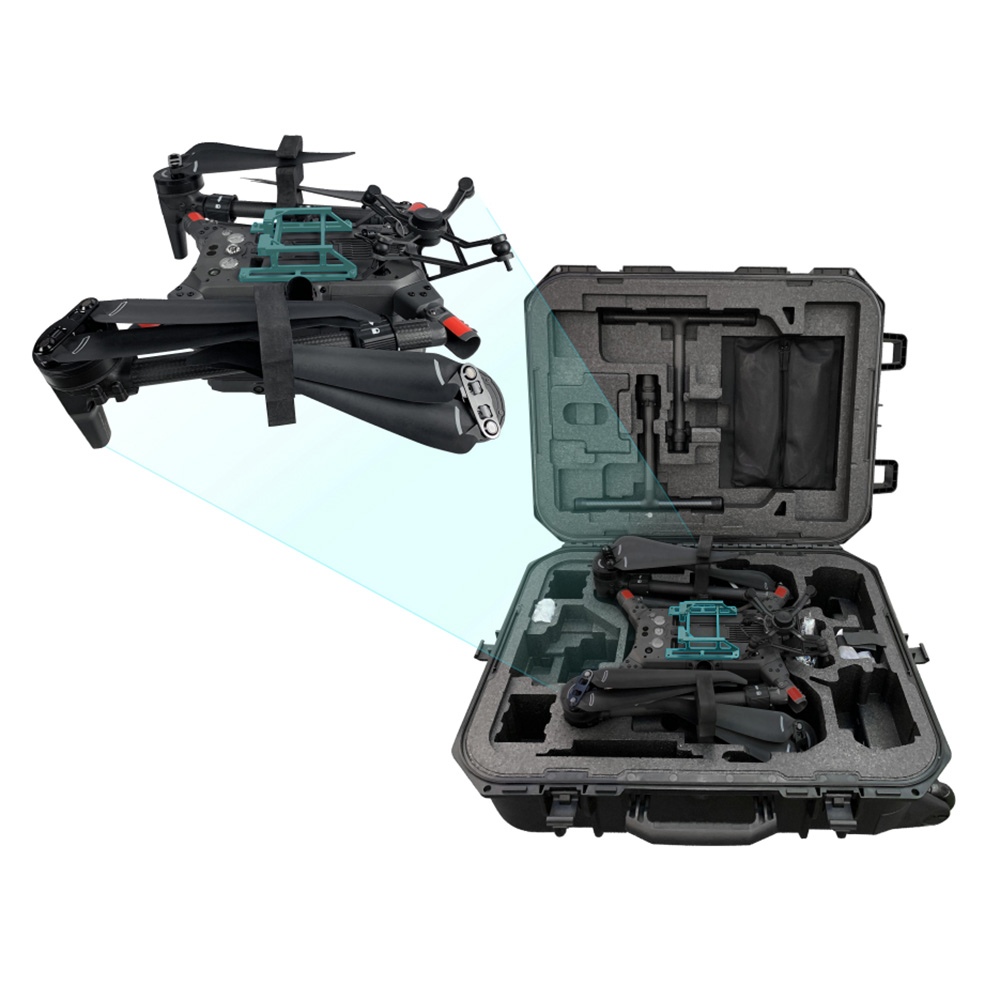

• Safety Case ×1

• Smoke/Flare Dispenser ×1

• Power Cable ×1

• M300 Mounting Bracket ×1

•
