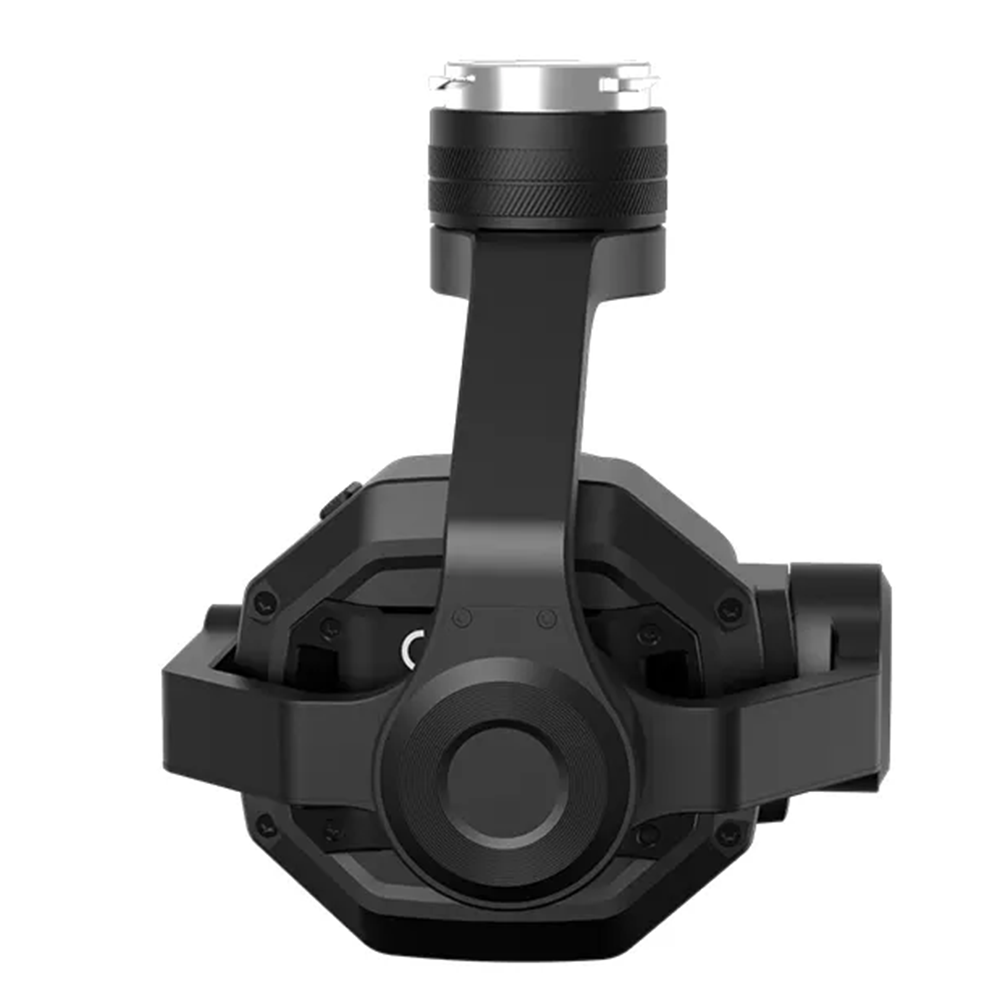

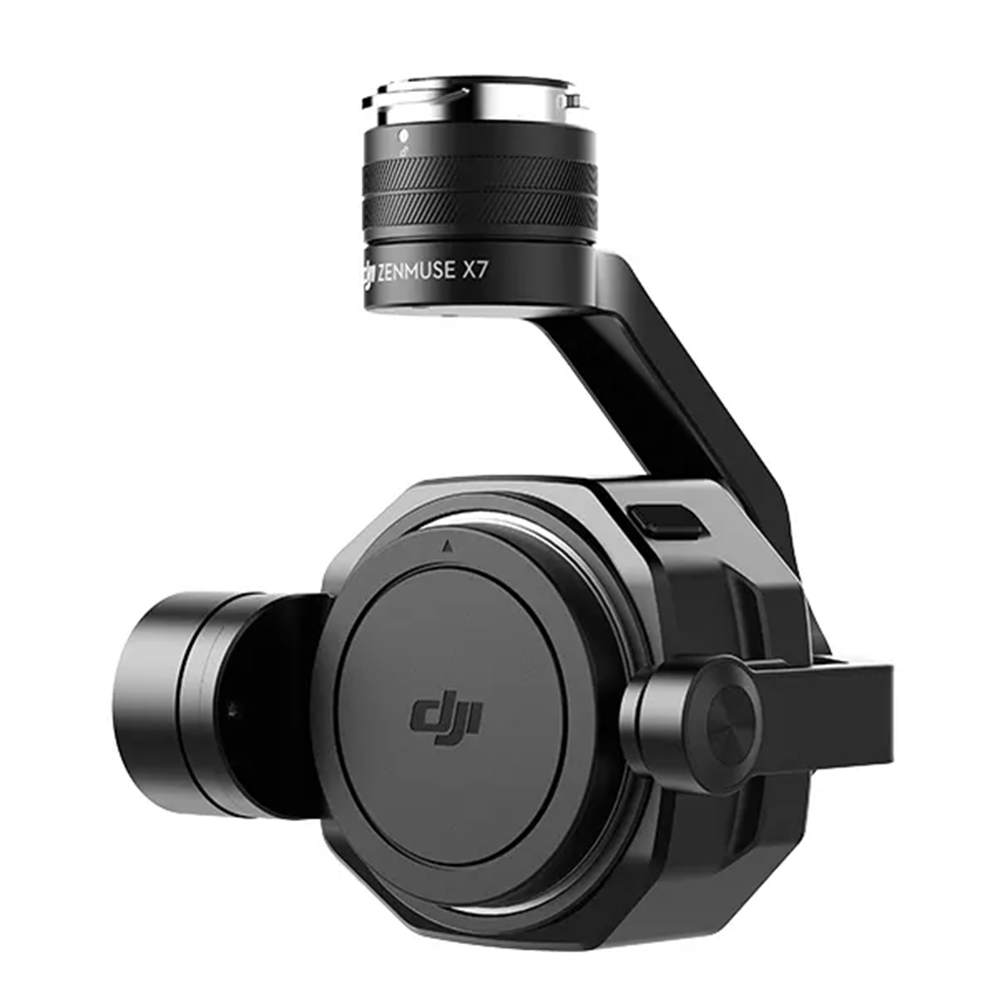

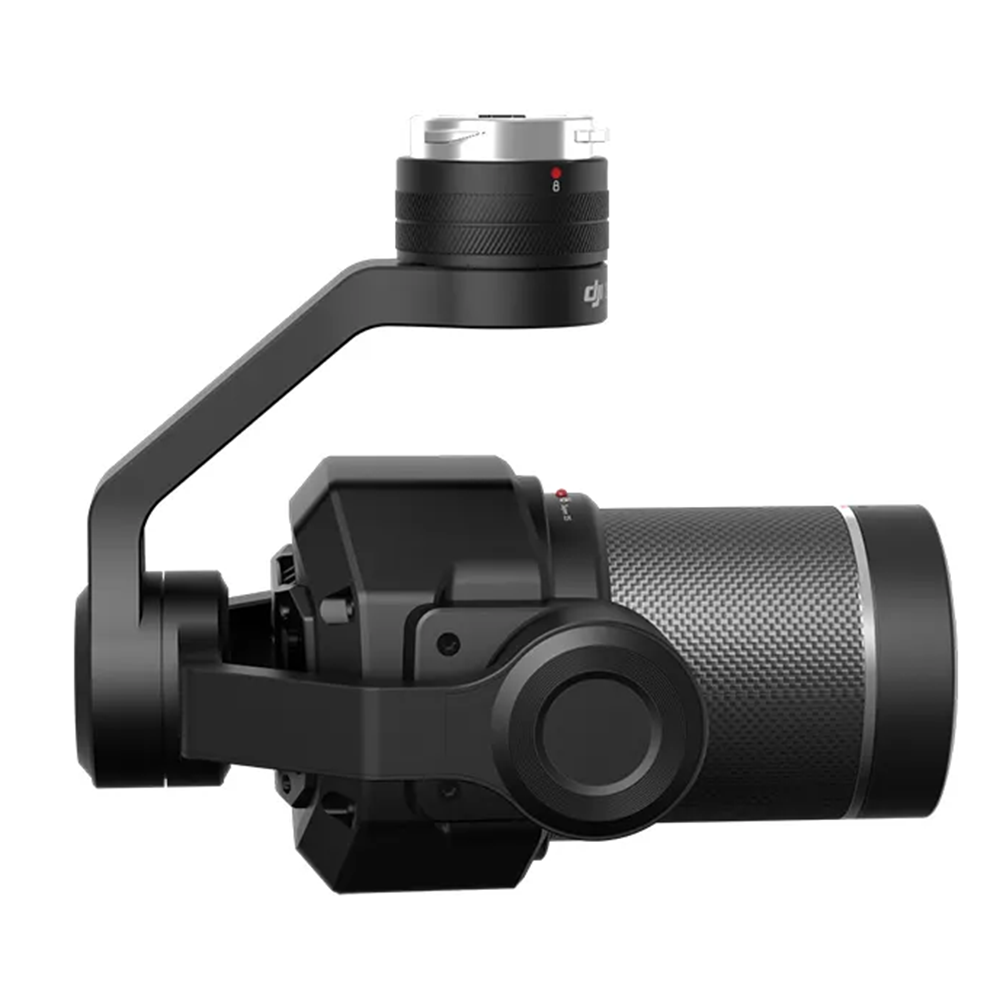

The Zenmuse X7 is a compact Super 35 camera with anintegrated gimbal made for high-end filmmaking that deliversstunning resolution and image quality. lts compatibility withthe Inspire 2 offers the best in next-level professional aerialcinematography.A 24 MP CMOS sensor rated at 14 stops ofdynamic range preserves astonishing detail and offers both 6KCinemaDNG and 5.2K Apple ProRes with support forcontinuous RAW burst shooting at 20 fps and 24 MP stills.*
The X7 also introduces the DL-Mount, the world's firstintegrated aerial lens mount that allows switching betweenfour available prime lenses quickly. For seamless editing, anew DJI Cinema Color System preserves accurate colors foreasier post-processing.These latest innovations allowfilmmakers to reach new heights and capture scenes as theyimagine them with the DJI Zenmuse X7.
Engineered for Excellence
The X7 uses a Super 35 sensor, and its high readout speedsupports RAW output at 6K/30 fps and 3.9K/59.94 fps. Thepixel size reaches 3.91 um and the diagonal length of thesensor is 26.6 mm when recording. A sensor this size offers ahigher sensitivity to light and 14 stops of dynamic rangemuch wider than the 12.8 stops featured on the Zenmuse X5SFurthermore, the SNR of the X7 is 46 dB, 8 dB higher than theX5S, and the tonal range is as high as 9.41 bits. All of thesefeatures offer unlimited creative options for a better workflowin the most demanding situations on set.

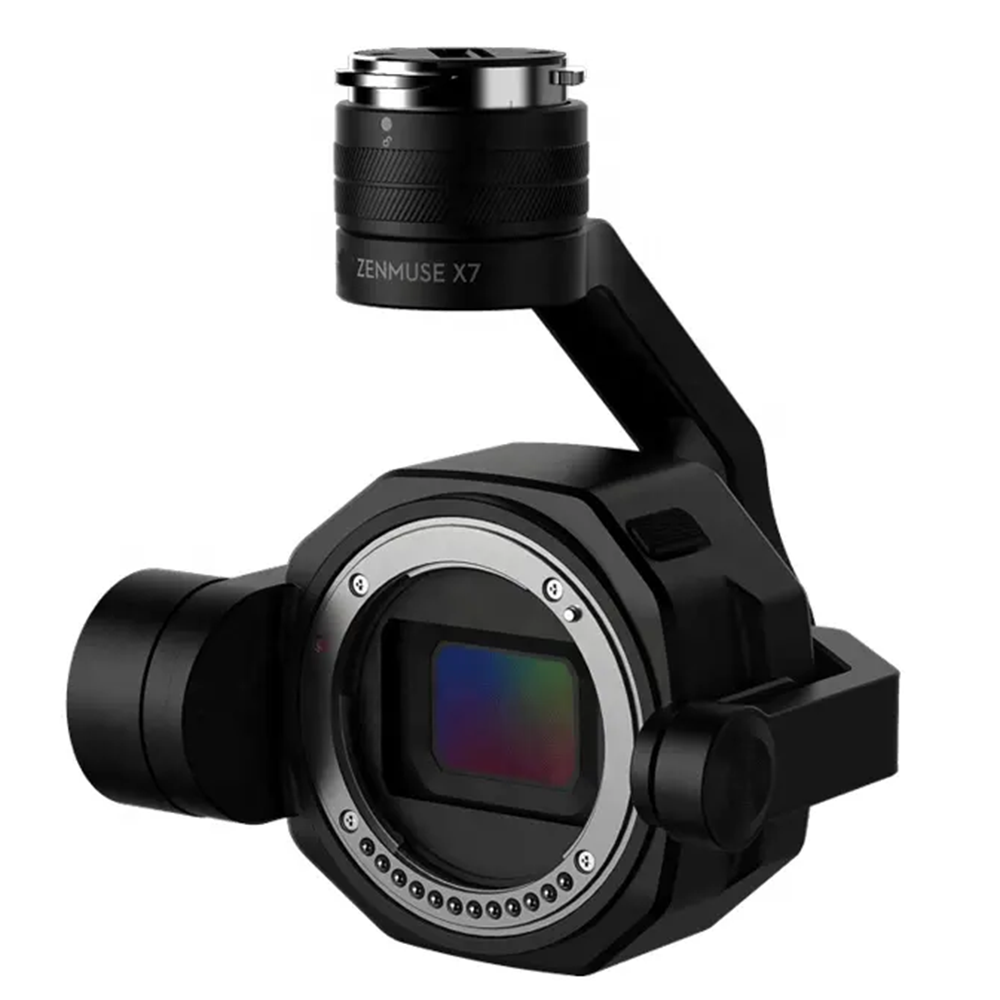

DJI DL-Mount System
Taking advantage of new FSl-Cu technology, the X7's sensorfeatures thinner interconnection, allowing light to reach thesensing area via a larger incident angle for increasedphotosensitivity. This enables a more compact lens mount tobe used on this sensor while maintaining excellent imagequality.The flange focal distance of the DL-Mount is less than 17 mm-roughly 1/3 of the size of a PL-Mount. Such a compact mountmeans that the X7 weighs only about 630 g with a lensincluded. Together, the X7 and Inspire 2 weigh around just 4kg with the ability to capture the same challenging shots asmore heavy-duty setups weighing up to 40 kg.

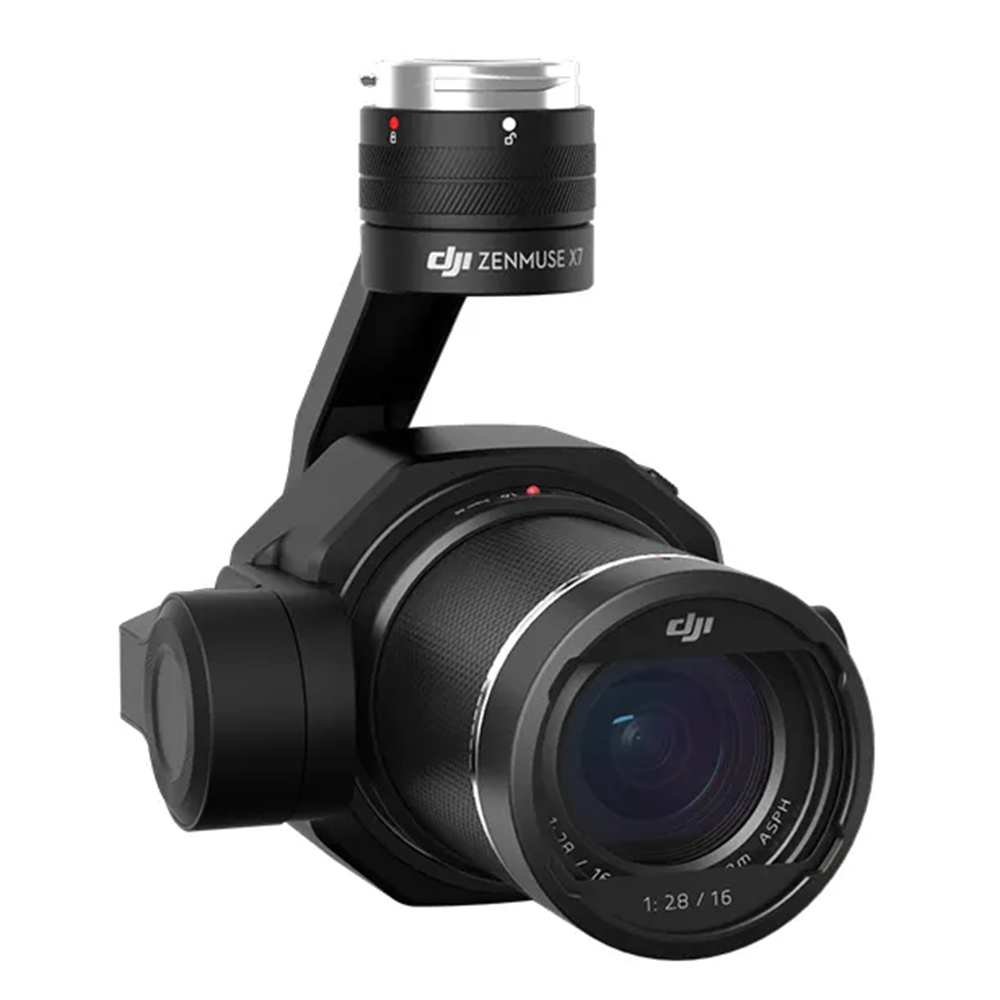

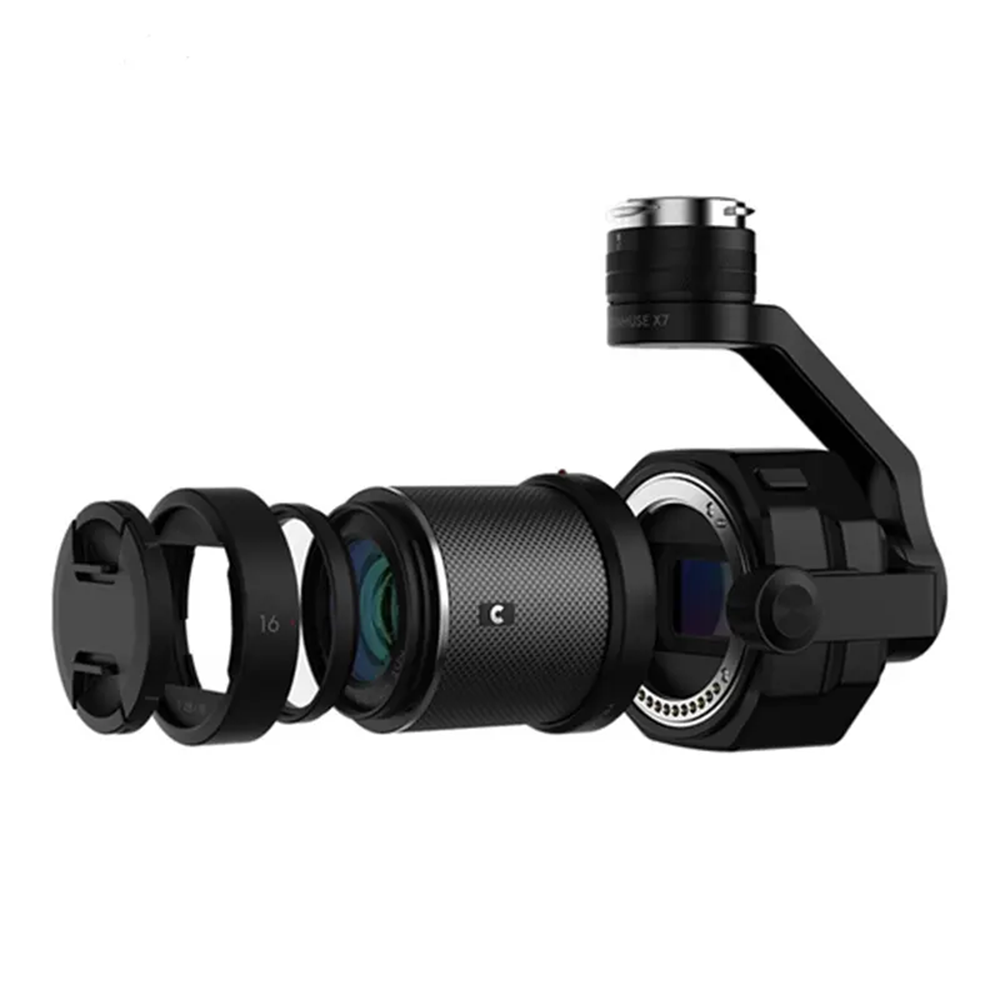

DL Lenses
DJI offers four prime lenses for the DL-Mount system, withfocal lengths ranging from 16-50 mm and resolutions of up to 8K. Made of lightweight carbon fiber and designed by world.leading optics teams, the four lenses have been embeddedwith advanced technologies crafted specifically for the X7'shigh-end image sensor.
A Game Changer fromShoot to Finish
The new color system consists of a new D-Log curve and a D.Gamut RGB color space. With professional cinematography inmind, the D-Log can encode 15 stops of dynamic range, two stopshigher than the Zenmuse X5S. Even in poor light conditions, theX7 can still preserve stunning detail in shadows and highlightsleaving more room for post-production creativity.
D-Gamut covers the entire DCl-P3 color space commonly used infilmmaking. Tailored for aerial cinematography and stillsphotography,D-Gamut provides larger green tone coveragedelivering beautifulgreen gradation for your shoots.
D-Gamut also offers optimized skin tone adjustment by movingthese tones to their most suitable chromaticity, ensuring vividcolors are reflected from every inch of skin. By applying thededicated 3D-LUT in color grading,skin tones will softlytransition, even with wide exposure differences. When designingD-Gamut, we considered manual color grading, preventing skintones from turning yellow when editing without 3D-LUT or colormanagement.
