DJI-Compatible Drone Payload Release Rope LD-JXTF 1.0
Precision Delivery | Industrial-Grade Efficiency
The LD-JXTF 1.0 Drone Payload Release Rope is an airborne deployment system designed for emergency rescue, aerial material transport, and industrial operations. Featuring a compact, lightweight, and high-strength structure, it excels in demanding scenarios such as firefighting, public safety missions, power line installation, disaster relief, and remote area supply delivery.
Industrial Durability
Reinforced with high-strength通用玛瑙 (Universal Agate) alloy core for exceptional tensile strength and flexibility.
Equipped with a self-winding line spool for tangle-free deployment and retraction.
Gravity hook with ergonomic design ensures secure attachment and safe operation.
Premium Materials
Aerospace-grade aluminum and nylon-sintered housing for heat resistance, corrosion resistance, and durability.
Imported brushless DC motor with a maximum load capacity of 5 kg (11 lbs).
M600 Quick-Release Mount (Optional)
Tool-free installation via spring-lock sliders and precision-machined aluminum brackets.

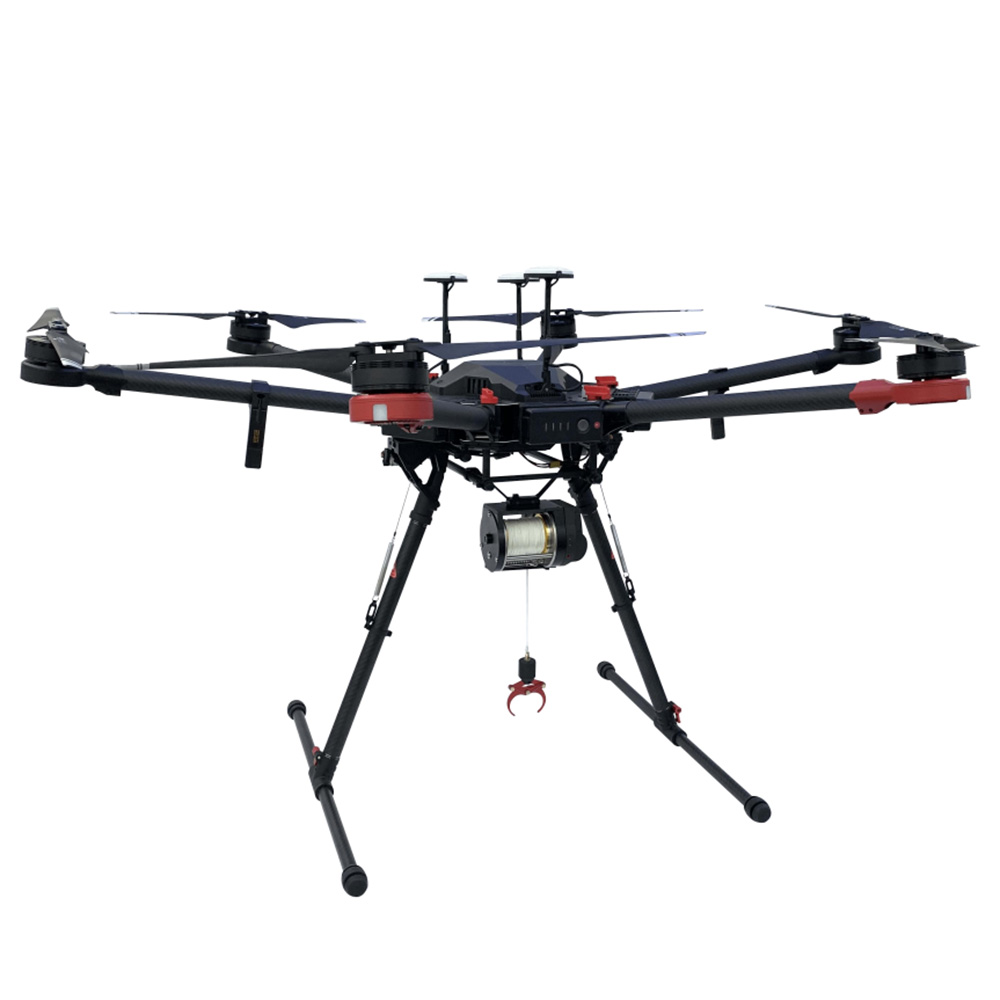

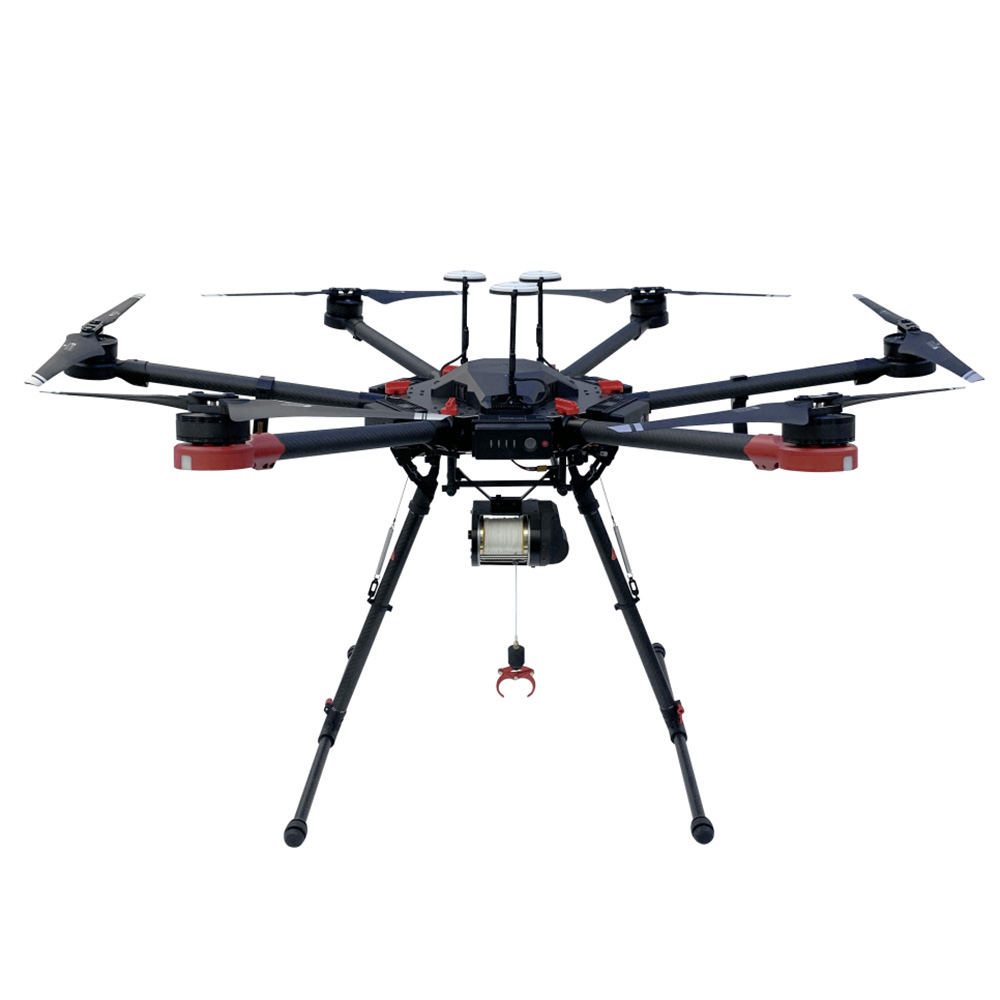

Compatible with DJI M600 Pro and other platforms (custom models require consultation).
Versatile Compatibility

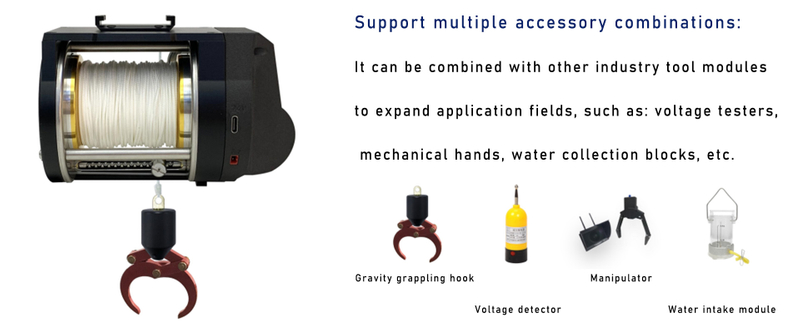

Supports modular expansion: Integrate with tools like electrical testers, robotic grippers, and water sampling modules.
24V power supply via XT30 connectors for seamless drone integration.
| Payload Release Rope | Remote Controller |
|---|---|
| Dimensions: 200×105×145 mm | Dimensions: 180×82×161 mm |
| Weight: 1.05 kg | Weight: 392 g |
| Line Length: 30 m | Power: 4×1.5 AA batteries |
| Deployment Speed: 10 m/min | Frequency: 2.4055–2.475 GHz |
| Max Load: 5 kg | Control Range: 800 m (open area) |
| Motor: 22W Brushless DC | Display: 128x64 STN LCD |
| Voltage: 24V | Signal Mode: PWM/PPM |
Emergency Rescue: Deliver supplies to isolated areas during disasters.
Public Safety: Transfer hazardous materials (e.g., explosives) safely.
Power Line Inspection: Deploy tools for high-voltage line testing.
Environmental Monitoring: Collect water samples in polluted or inaccessible zones.
Firefighting: Assist in rapid equipment delivery during operations.

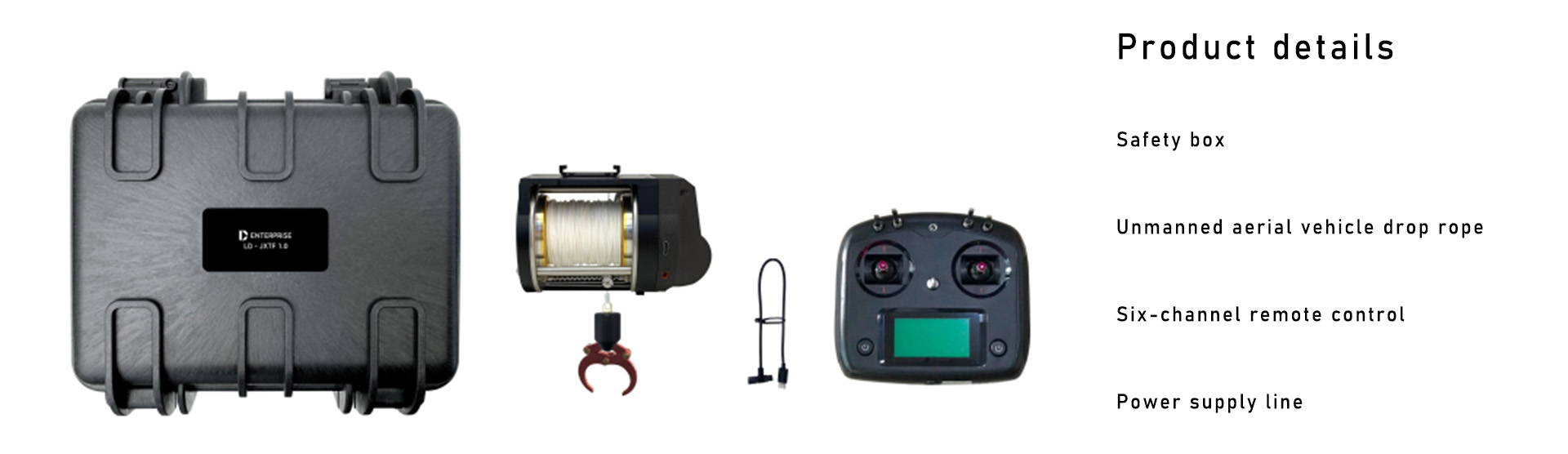

Safety Case ×1
Payload Release Rope ×1
6-Channel Remote Controller ×1
Power Cable ×1
*(M600 Quick-Release Mount sold separately)*
